1.8kw 220V 3000rpm 3 Pha Unit Mige 3m Cable and Direct Adtech Brake Deriv and Direct Drive AC Servo Motor and Drive

Product Description

Ac Servo Motor (220V) With G2 Model Ac servo Driver
1.8kw 220V 3000rpm 3 Pha Unit Mige 3m Cable and Direct Adtech Brake Deriv and Direct Drive AC Servo Motor and Drive

General Specification:
1.8kw 220V 3000rpm 3 Pha Unit Mige 3m Cable and Direct Adtech Brake Deriv and Direct Drive AC Servo Motor and Drive


ModelM02030M04020M04030M05030M06020M06030
Rated power(KW)0.60.81.21.51.21.8
Rated voltage (V)220220220220220220
Rated current(A)2.53.5564.56
Rated speed(rpm)300020003000300020003000
Rated torque(N.m)244566
Peak torque(N.m)61212151218
Voltage constant(V/Krpm)567954628360
Torque coefficient(N.m/A)0.81.140.80.831.31
Rotar inertia(Kg.m2)0.31×10-30.54×10-30.54×10-30.63×10-30.76×10-30.76×10-4
Line-Line Resistance(Ω)3.62.411.091.031.460.81
Line-Line Inductance(mH)8.327.33.33.434.72.59
Electrical time constant(ms)2.3333.33.23.2
Weight(Kg)4.55.55.56.16.76.7
Insulation classClassF
Safety classIP65
Working EnviromentTemperate: -20ºC~+50ºC;Humidity<90


Products of special request can be made according to the customer request !

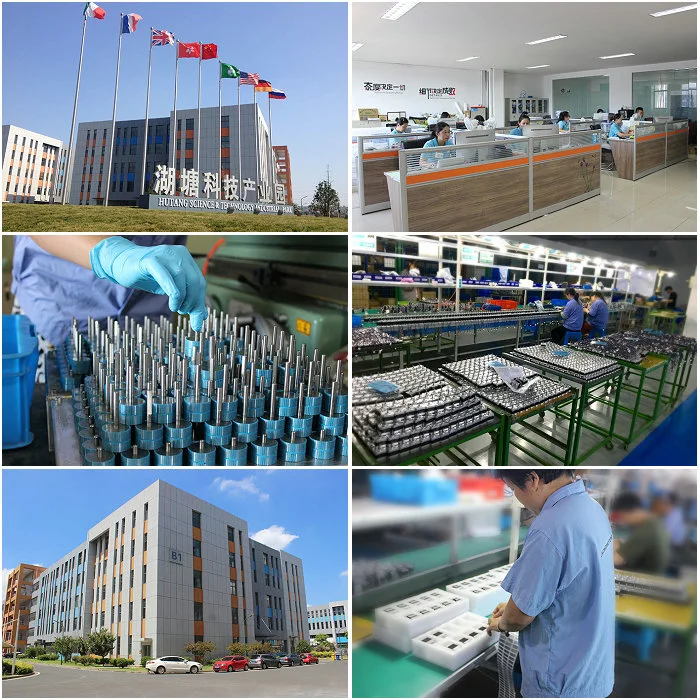

company information:
1.8kw 220V 3000rpm 3 Pha Unit Mige 3m Cable and Direct Adtech Brake Deriv and Direct Drive AC Servo Motor and Drive
our certification:
1.8kw 220V 3000rpm 3 Pha Unit Mige 3m Cable and Direct Adtech Brake Deriv and Direct Drive AC Servo Motor and Drive

Our Company offers three major series of products:Hybrid Stepper Motors, Brushless Dc Motor and Dc Brush Motor.
We are always continues develop new type models.If you need other kinds of parts, please don't hesitate to contact us.
