2021 New Updated Microstep Stepper Motor Driver Dm860 for CNC Stepper Motor Kits

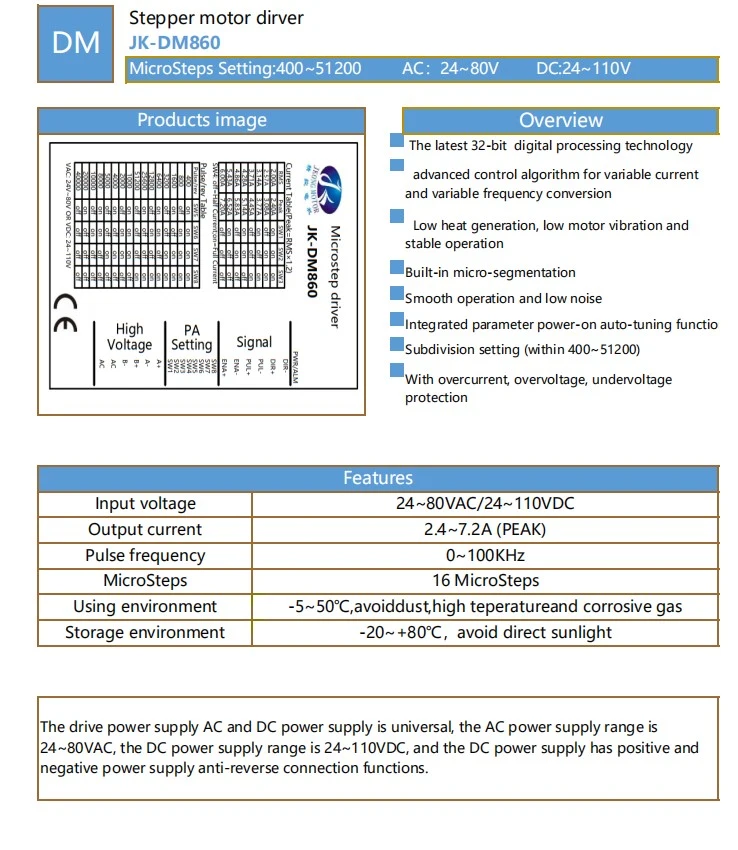

Product Description
Input voltage | 24~80VAC/24~110VDC |
Output current | 2.4~7.2A (PEAK) |
Pulse frequency | 0~100KHz |
MicroSteps | 16 MicroSteps |
Consumption | 80W |
Using environment | 5~50ºC,avoiddust,high teperatureand corrosive gas |
Storage environment | -20~+80ºC,avoid direct sunlight |
Weight | 200g |
Features:
1. The latest 32-bit digital processing technology
2. Advanced control algorithm for variable current and variable frequency conversion
3. Low heat generation, low motor vibration and stable operation
4. Built-in micro-segmentation
5. Smooth operation and low noise
6. Integrated parameter power-on auto-tuning function
7. Subdivision setting (within 400~51200)
8. With overcurrent, overvoltage, undervoltage protection
2. Advanced control algorithm for variable current and variable frequency conversion
3. Low heat generation, low motor vibration and stable operation
4. Built-in micro-segmentation
5. Smooth operation and low noise
6. Integrated parameter power-on auto-tuning function
7. Subdivision setting (within 400~51200)
8. With overcurrent, overvoltage, undervoltage protection
