Tr8*8 (P2) Non-Captive Hybrid Linear Stepper Motors NEMA17 with Screw 150mm

Product Description

NEMA17 Hrbrid Lead Screw Stepper Motor

General Specifications:




Model No.
Step AngleMotor Length
Current
/Phase

Resistance
/Phase

Inductance
/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass
( °)(L)mmAΩmHN.mNo.g.cmg.cmKg
JK42HS25-04041.8250.424361.8475200.15
JK42HS34-13341.8341.332.12.52.24120340.22
JK42HS40-16841.8401.681.653.23.64150540.28
JK42HS48-16841.8481.681.652.84.44260680.35
JK42HS60-10041.8601.08137.542801020.5

(ITEM)

(Specification)

Step angle

1.2°

Tempareture Rise

80ºC max

Ambient Temperature Range

-20ºC- +50ºC

Insulation Resistance

100MΩ Min., 500VDC

Dielectric Strength

500 VAC for 1s 3mA

Shaft Radial Play

0.02 Max.(450g-load)

Shaft Axial Play

0.08 Max.(450g-load)

Max. radial force

28N(20mm from the flange)

Max. axial force

10N

 Tr8*8 (P2) Non-Captive Hybrid Linear Stepper Motors NEMA17 with Screw 150mm

Applications:




Used for robots stepper motor,

Electronic automatic equipment stepping motor,

Medical instrument stepping motor,

Advertising instrument stepper motor,

Lighting& audio equipment stepper motor,

Printer stepper motor, textile machinery stepper motor.

Cnc router stepper motor.

Note: We can also manufacture products according to customer's requirements.

Contact:

Tr8*8 (P2) Non-Captive Hybrid Linear Stepper Motors NEMA17 with Screw 150mm

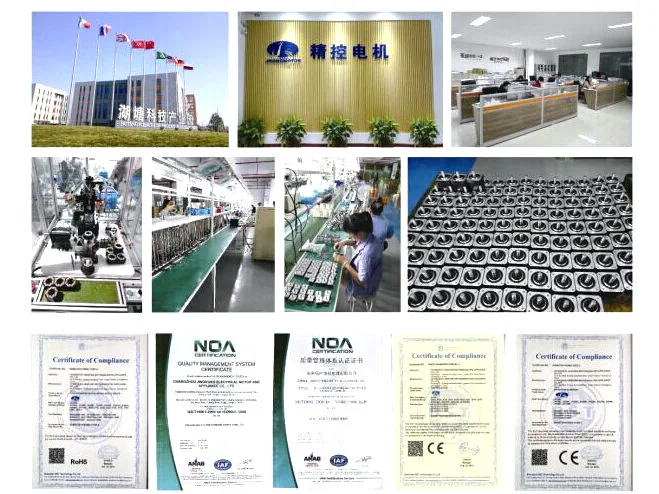

Company Show:

Tr8*8 (P2) Non-Captive Hybrid Linear Stepper Motors NEMA17 with Screw 150mm

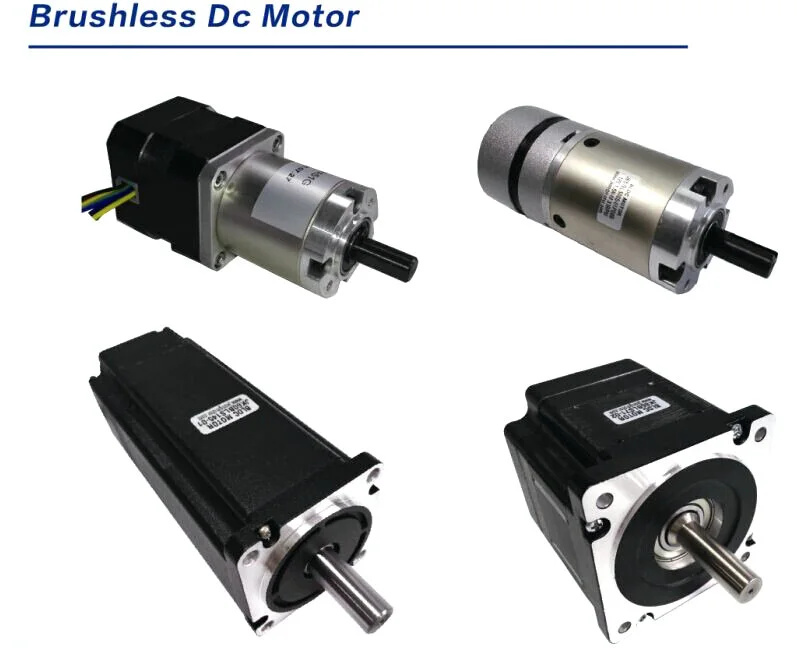

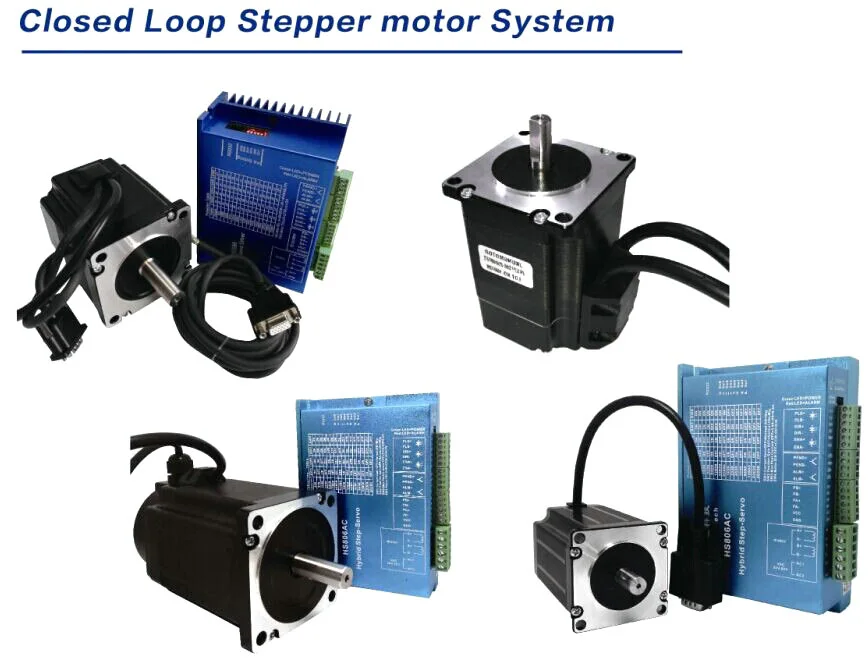

We aslo supply Stepper motor Kits, Linear Stepper Motor, Dc motor, Brake stepper motor, Stepper motor with Encoder, Flexible coupling, Pully, Power Supply, Breakout Board and so on..

Tr8*8 (P2) Non-Captive Hybrid Linear Stepper Motors NEMA17 with Screw 150mm



Tr8*8 (P2) Non-Captive Hybrid Linear Stepper Motors NEMA17 with Screw 150mm


Contact us if you need more details on Lead Screw Motor. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Ball Screw Motor、Stepper Motor. If these products fail to match your need, please contact us and we would like to provide relevant information.
