Jkongmotor Brand Jk42HS40-1684 Stepper Motor with Planetary Gearbox, Stepper Motor with Encoder

Product Description

JK42HSP 42mm(NAMA17) planetery gearbox stepping motor with high quality
Genaral Specification:
Housing MaterialMetal
Bearing at OutputBall Bearings
Max.Radial Load(12mm from flange)≤80N
Max.Shaft Axial Load≤30N
Radial Play of Shaft (near to Flange)≤0.06mm
Axial Play of Shaft ≤0.3mm
Backlash at No-load 1.5°
42HS  42HS Hybrid Stepping Motor Specifications

Model No.

Step Angle

Motor Length

Current
/Phase

Resistance
/Phase

Inductance
/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass
( °)(L)mmAΩmHkg.cmNo.g.cmg.cmKg
JK42HS34-13341.8341.332.12.52.24120340.22
JK42HS34-04061.8340.424151.66120340.22
JK42HS40-16841.8401.681.653.23.64150540.28
JK42HS40-12061.8401.232.72.96150540.28
JK42HS48-16841.8481.681.652.84.44260680.35
JK42HS48-12061.8481.23.32.83.176260680.35
JK42HS60-17041.8601.736.27.342801020.5
JK42HS60-12061.8601.2675.662801020.5

42HS  42HS Planetary Gearbox Specifications
Reduction ratio3.715.1813.7619.226.8517199.5139
Number of gear trains123
Length(L2)   mm27.33542.7
Max.rated torque   kg.cm203040
Short time permissible torque   kg.cm406080
Weight    g350450550

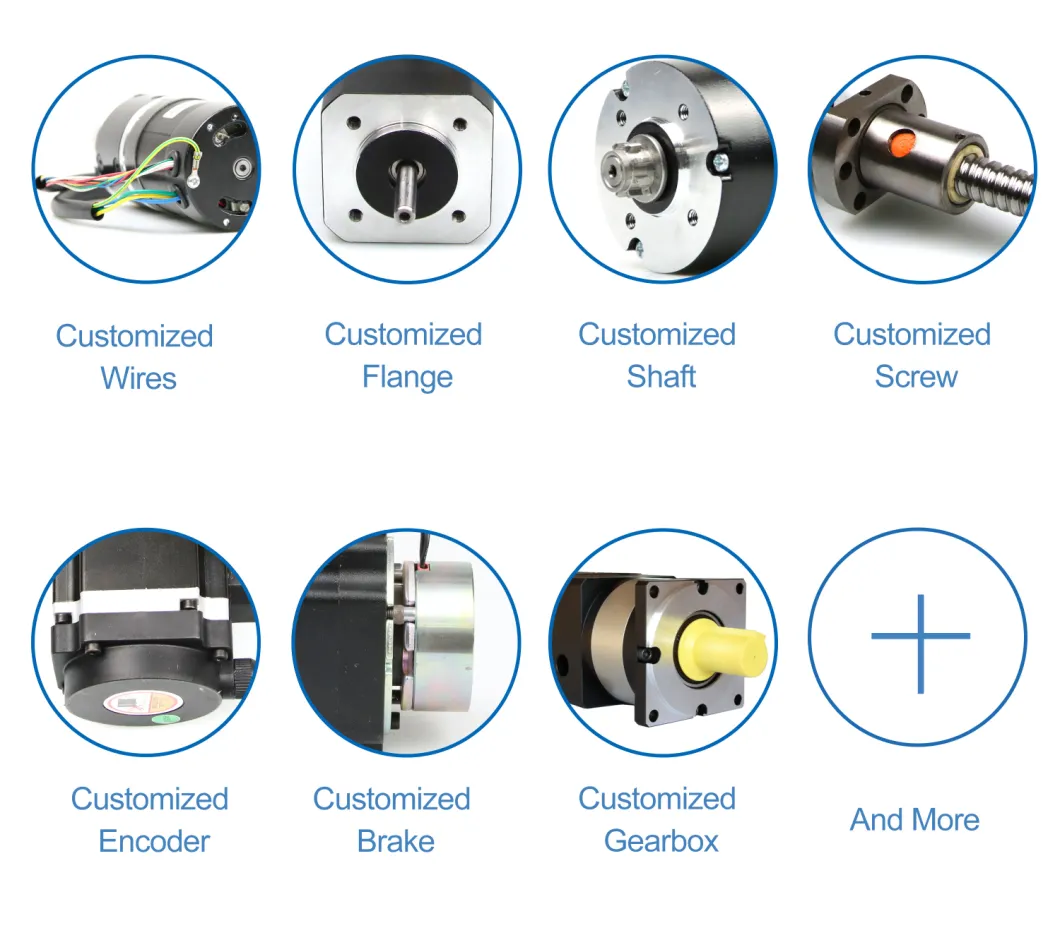

Products of special request can be made according to the customer request !

Jkongmotor Brand Jk42HS40-1684 Stepper Motor with Planetary Gearbox, Stepper Motor with EncoderJkongmotor Brand Jk42HS40-1684 Stepper Motor with Planetary Gearbox, Stepper Motor with EncoderJkongmotor Brand Jk42HS40-1684 Stepper Motor with Planetary Gearbox, Stepper Motor with Encoder

company information:
Jkongmotor Brand Jk42HS40-1684 Stepper Motor with Planetary Gearbox, Stepper Motor with Encoder
our packing:
Jkongmotor Brand Jk42HS40-1684 Stepper Motor with Planetary Gearbox, Stepper Motor with Encoder
our certification:
Jkongmotor Brand Jk42HS40-1684 Stepper Motor with Planetary Gearbox, Stepper Motor with Encoder


Our Company offers three major series of products:Hybrid Stepper Motors, Brushless Dc Motor and Dc Brush Motor.
We are always continues develop new type models.If you need other kinds of parts, please don't hesitate to contact us.

Contact us if you need more details on Stepper Motor. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Stepping Motor、Gearbox Stepper Motor. If these products fail to match your need, please contact us and we would like to provide relevant information.
