Cheap NEMA24 Closed Loop Stepper System 2 Phase Cloesd Loop Stepper Motor From China Factory

Product Description

Nema24 Closed Loop Stepper System 2 Phase Cloesd Loop Stepper Motor with Factory Price
General Specification:
ItemSpecifications
Step Angle1.8°
Temperature Rise80ºCmax
Ambient Temperature-20ºC~+50ºC
Insulation Resistance100 MΩ Min. ,500VDC
Dielectric Strength500VAC for 1minute
Shaft Radial Play0.02Max. (450g-load)
Shaft Axial Play0.08Max. (450g-load)
Max. radial force75N (20mm from the flange)
Max. axial force15N
Electrical Specification:
Model No.Step AngleMotor LengthCurrent
/Phase
Resistance
/Phase
Inductance
/Phase
Holding Torque# of LeadsDetent TorqueRotor InertiaMass
 ( °)(L)mmAΩmHN.mNo.Kg.cmg.cmKg
JK60HS88-4004BFED-0.35M1.8884.00.652.43.1410008401.4
JK60HS100-4004BFED-0.35M1.81004.00.73.04.0411009802.0


Products of special request can be made according to the customer request !
Cheap NEMA24 Closed Loop Stepper System 2 Phase Cloesd Loop Stepper Motor From China FactoryCheap NEMA24 Closed Loop Stepper System 2 Phase Cloesd Loop Stepper Motor From China FactoryCheap NEMA24 Closed Loop Stepper System 2 Phase Cloesd Loop Stepper Motor From China FactoryCheap NEMA24 Closed Loop Stepper System 2 Phase Cloesd Loop Stepper Motor From China Factory

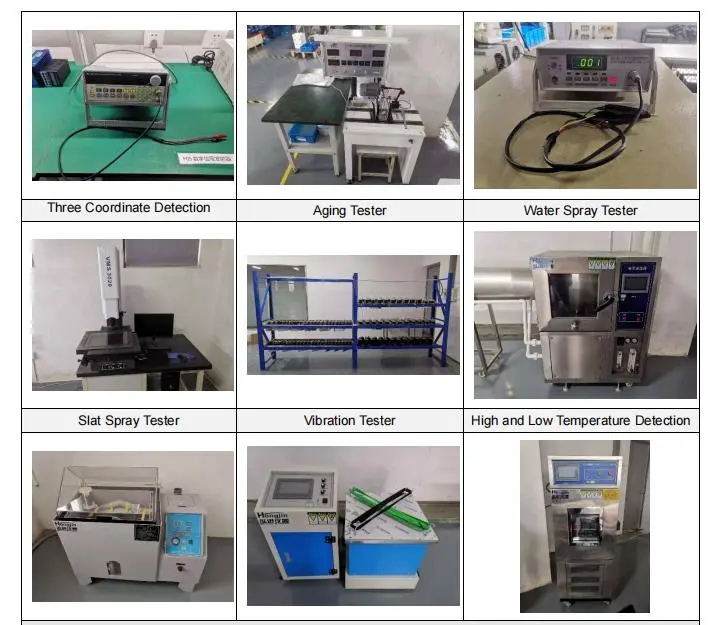

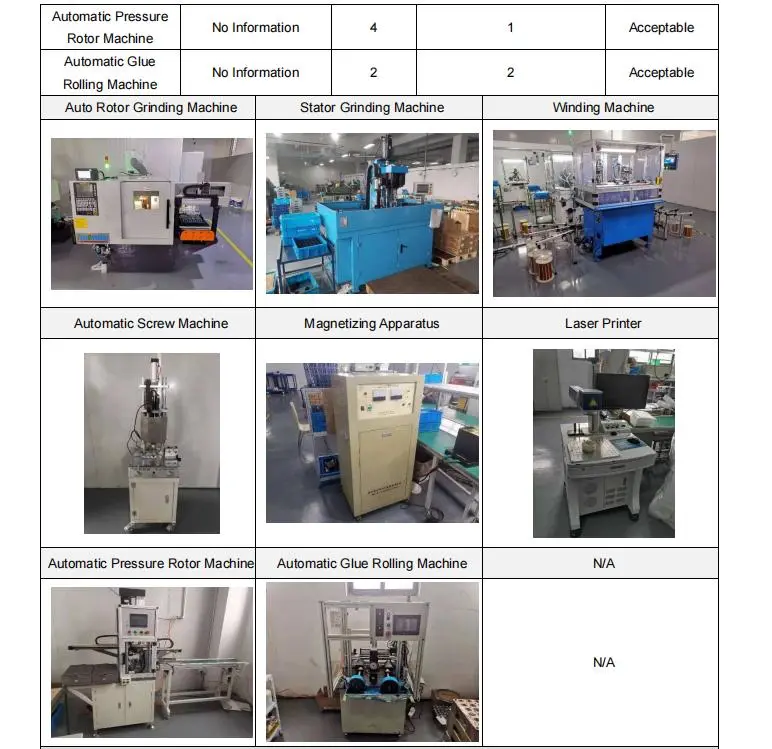

company information:
Cheap NEMA24 Closed Loop Stepper System 2 Phase Cloesd Loop Stepper Motor From China Factory
our certification:
Cheap NEMA24 Closed Loop Stepper System 2 Phase Cloesd Loop Stepper Motor From China Factory

Our Company offers three major series of products:Hybrid Stepper Motors, Brushless Dc Motor and Dc Brush Motor.
We are always continues develop new type models.If you need other kinds of parts, please don't hesitate to contact us.
