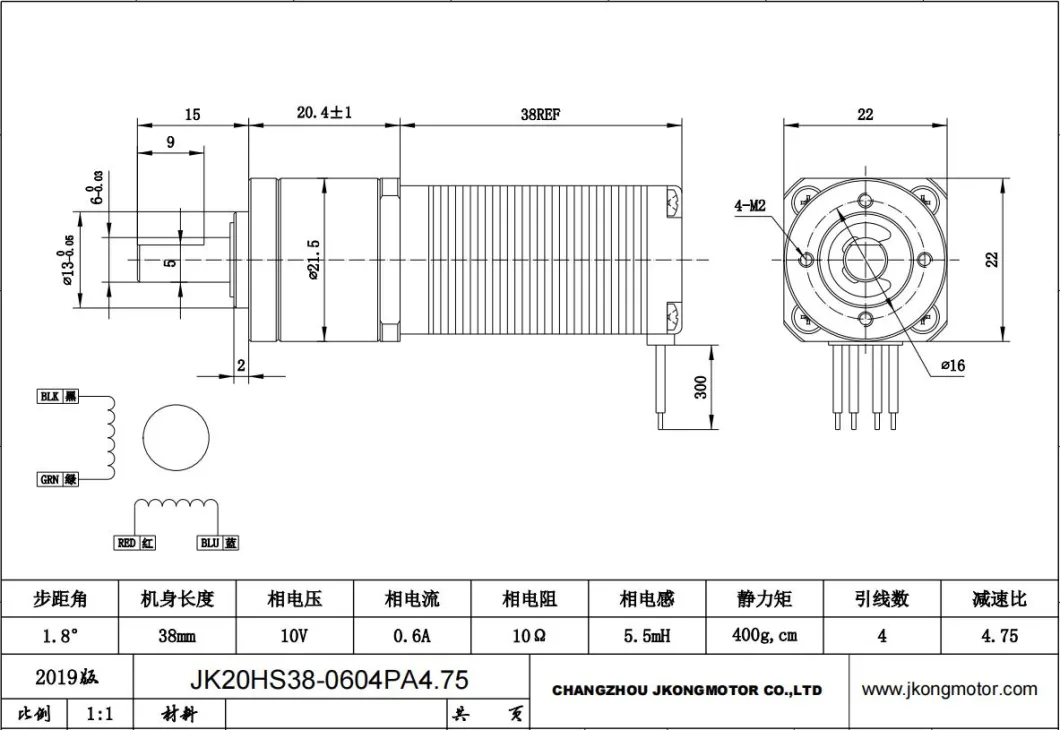

Mini Gear Motor High Torque Stepper Motor 16oz-in with Gearbox Ratio 4.75

Product Description

Specification:

	Metal
Bearing at Output	Ball or Sleeve
Permissible overhung Load	≤2.5kg
Permissible Thrust Load	≤0.5kg
Radial Play of Shaft (near to Flange)	≤0.05mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	≤1°

20HS Hybrid Stepping Motor Specifications

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Rotor Inertia	Motor Weight
Model No.	( °)	(L)mm	A	Ω	mH	g.cm	No.	g.cm	Kg
JK28HS32-0674	1.8	32	0.67	5.6	3.4	600	4	9	0.11
JK28HS32-0956	1.8	32	0.95	2.8	0.8	430	6	9	0.11
JK28HS45-0956	1.8	45	0.95	3.4	1.2	750	6	12	0.14
JK28HS45-0674	1.8	45	0.67	6.8	4.9	950	4	12	0.14
JK28HS51-0956	1.8	51	0.95	4.6	1.8	900	6	18	0.2
JK28HS51-0674	1.8	51	0.67	9.2	7.2	1200	4	18	0.2

Planetary Gearbox Specifications

Reduction ratio	4	5	16	19	22	64	76	90	107
Number of gear trains	1	1	2	2	2	3	3	3	3
Length of gearbox mm	21	21	26	26	26	31	31	31	31
Max.rated torque kg.cm	5	5	7	7	7	9	9	9	9
Short time permissible torque kg.cm	10	10	15	15	15	20	20	20	20

Mini Gear Motor High Torque Stepper Motor 16oz-in with Gearbox Ratio 4.75

Contact us if you need more details on Geare Stepper Motor. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Electrical Motor、Gear Stepping Motor. If these products fail to match your need, please contact us and we would like to provide relevant information.
