NEMA 23 High Torque Gear Reducer Stepper Motor

Product Description

NEMA 23 High Torque Gear Reducer Stepper Motor
ItemSpecifications
Step Angle1.8°
Temperature Rise80ºCmax
Ambient Temperature-20ºC~+50ºC
Insulation Resistance100 MΩ Min. ,500VDC
Dielectric Strength500VAC for 1minute
Shaft Radial Play0.02Max. (450g-load)
Shaft Axial Play0.08Max. (450g-load)
Max. radial force75N (20mm from the flange)
Max. axial force15N


Specifications:

Model No.

Step Angle

Motor Length

Current
/Phase

Resistance
/Phase

Inductance
/Phase
Holding Torque
# of Leads

Detent Torque

Rotor Inertia

Mass
( °)(L)mmAΩmHN.mNo.g.cmg.cmKg
JK57HS41-10061.84117.180.4862501500.47
JK57HS41-20081.84121.41.40.3982501500.47
JK57HS41-28041.8412.80.71.40.5542501500.47
JK57HS51-10061.85116.68.20.7263002300.59
JK57HS51-20081.85121.82.70.983002300.59
JK57HS51-28041.8512.80.832.21.0143002300.59
JK57HS56-20061.85621.82.50.963502800.68
JK57HS56-21081.8562.11.82.5183502800.68
JK57HS56-28041.8562.80.92.51.243502800.68
JK57HS64-28041.8642.80.82.3144003000.75
JK57HS76-28041.8762.81.13.61.8946004401.1
JK57HS76-30061.876311.61.3566004401.1
JK57HS76-30081.876311.81.586004401.1
JK57HS82-30041.88231.242.1410006001.2
JK57HS82-40081.88240.81.82810006001.2
JK57HS82-42041.8824.20.72.52.2410006001.2
JK57HS100-42041.81004.20.7533411007001.3
JK57HS112-30041.811231.67.53412008001.4
JK57HS112-42041.81124.20.93.83.1412008001.4

Planetary Gearbox Specification:
 Reduction ratio3.64.251315182347556577121154187220260307
 Number of gear trains1234
(L2) Length(mm)37.849.560.871.9
Max.rated torque(N.m)3122430
Short time permissible torque(N.m)9367290
Efficiency( %)90%      81%73%66%
Weight(g)4896818711066

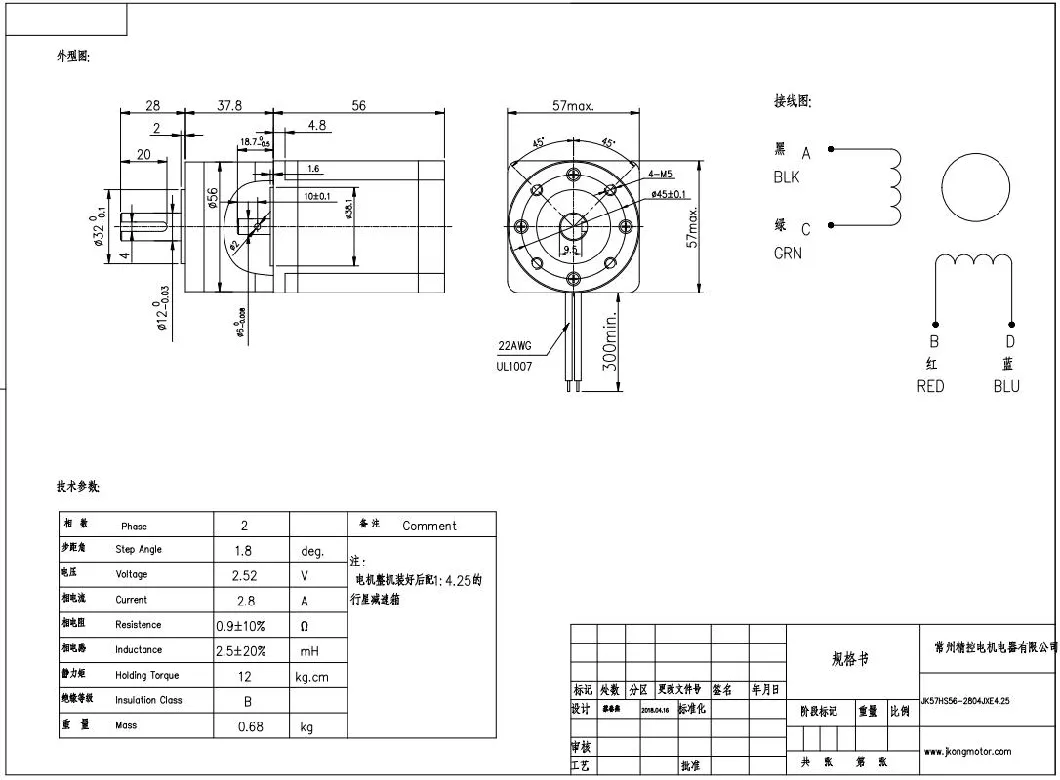

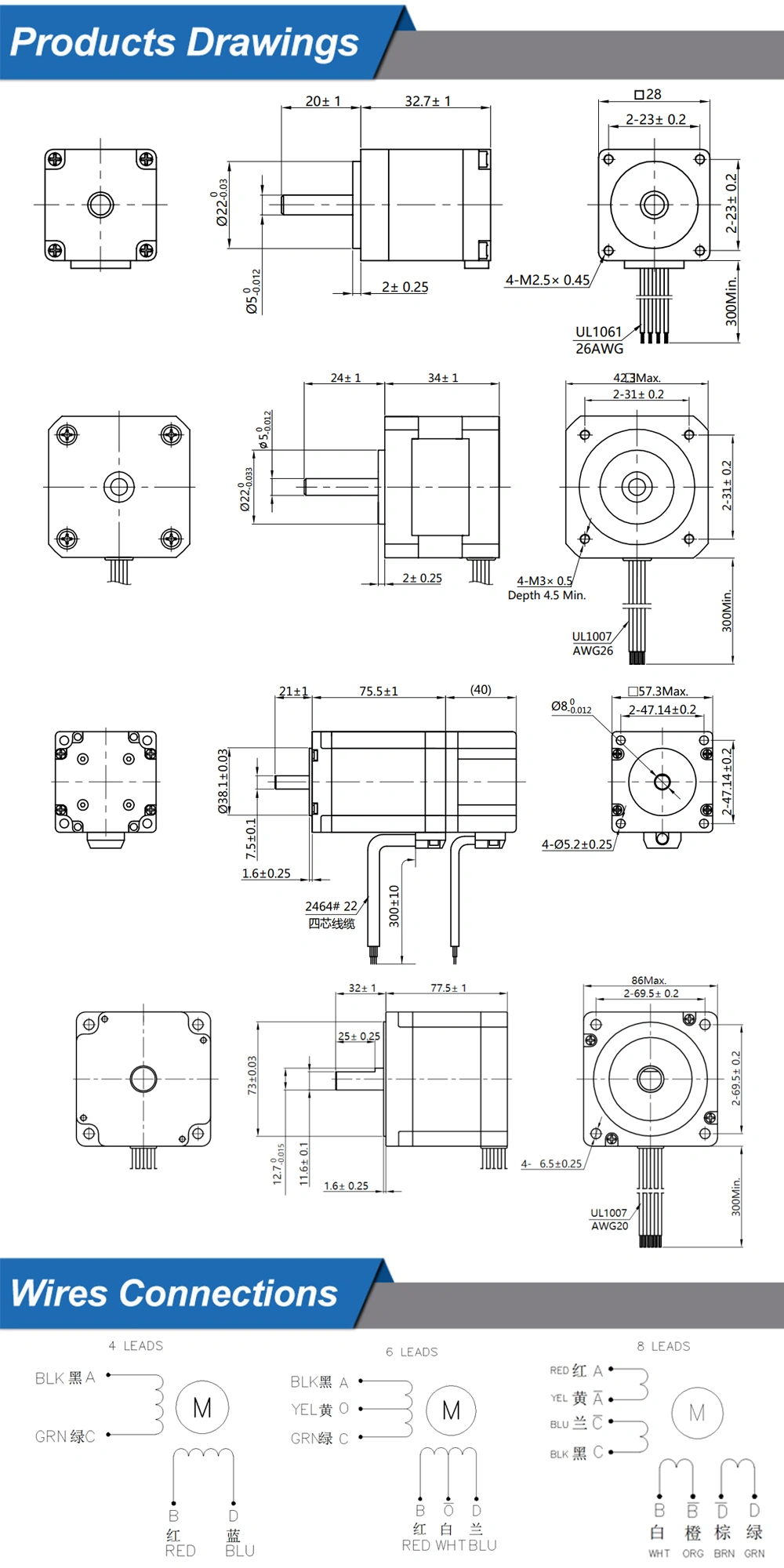

Drawing(unit=mm)

NEMA 23 High Torque Gear Reducer Stepper Motor


NEMA 23 High Torque Gear Reducer Stepper Motor
NEMA 23 High Torque Gear Reducer Stepper Motor
NEMA 23 High Torque Gear Reducer Stepper Motor
NEMA 23 High Torque Gear Reducer Stepper MotorNEMA 23 High Torque Gear Reducer Stepper MotorNEMA 23 High Torque Gear Reducer Stepper MotorNEMA 23 High Torque Gear Reducer Stepper Motor
NEMA 23 High Torque Gear Reducer Stepper Motor

NEMA 23 High Torque Gear Reducer Stepper Motor
NEMA 23 High Torque Gear Reducer Stepper Motor
