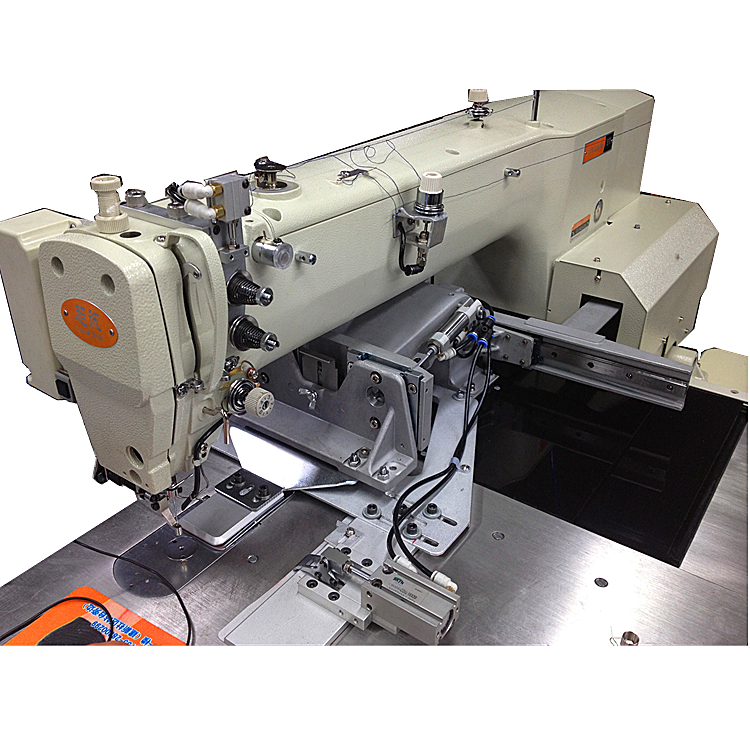

Full automatic cap-visor sewing machine
Basic Info
Model No.: CC-3020-01A-MY
Product Description
This machine designed specialized in Cap/hat making, for the industrial use, automatic sewing system with the LCD touch screen control panel, saving the labor cost, improving the productivity.
- Fully automatic feeding and easy operation
- One worker can check 1-4 machines
- Pattern can be designed and perfect sewing lines
Shoe sewing machine, leather sewing machine, industrial sewing machine, computerized sewing machine, footwear sewing machine, automatic sewing machine, cap sewing machine
Model | CC-3020G-01A-MY | ||
Sewing area | Max.30×20cm | ||
Line | single needle sewing | ||
Highest sewing speed | 2700rpm | ||
Feeding device | manipulator feeding (Stepper Motor control ) | ||
Stitch length | 0.05-12.7mm | ||
Max.stitches | 20,000 stitches/pattern | ||
Work clamp lifter | pnuematic (height:max.30mm) | ||
Foot pedal | all in one foot pedal | ||
Foot pedal ascensional range | 22mm | ||
Hook | double shuttle hook | ||
Tension device | electric tension device | ||
Data storage | USB or Memory card(CF card can save and edit any sewing patterns) | ||
Motor | Ac Servo Motor 550W | ||
Air pressure | 0.5Mpa 1.8L/min | ||
Net weight | 220kg | ||
Gross weight | 290kg | ||
Packing | 126*126*135cm | ||
CBM | 2.14m³ | | |
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How can I place the order?
A5: First sign the PI, and pay deposit, then we will arrange the production. After finished production, you need to pay the balance. Finally we will ship the machines to you.
Q6: What information shall we give before placing a purchase order?
A6: a)Type of sewing machine, automatic or semi-automatic etc. b) let us know your application, jeans, shoes, handbags etc. c) Purchase quantity. d) Other special requirements.
Q7:How to choose machines which meets our applications?
A7:You can refer to our catalogue to choose the machine or we can help to choose when you provide the technical information of required output torque, output speed and motor parameter etc.
Product Categories : Special industrial sewing machine > Cap Sewing Machine
