57bl 86bl High Torque 12V 24V 36V 48V Brushless DC Motor 50W 75W 100W 150W 200W Controller/Driver Integrated BLDC Gear Motor 12 24 36 48 Volt PWM Speed Control
Product Description
NEMA 34 BLDC Motor
General Specification:
| (Item) | (Specification) |
| Winding type | Star |
| Hall effect angle | 120 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm@450g |
| End play | 0.08mm@450g |
| Max.radial force | 220N @20mm form the flange |
| Max.axial force | 60N |
| Insulation class | Class B |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩ Min.,500VDC |
Electrical Specification:

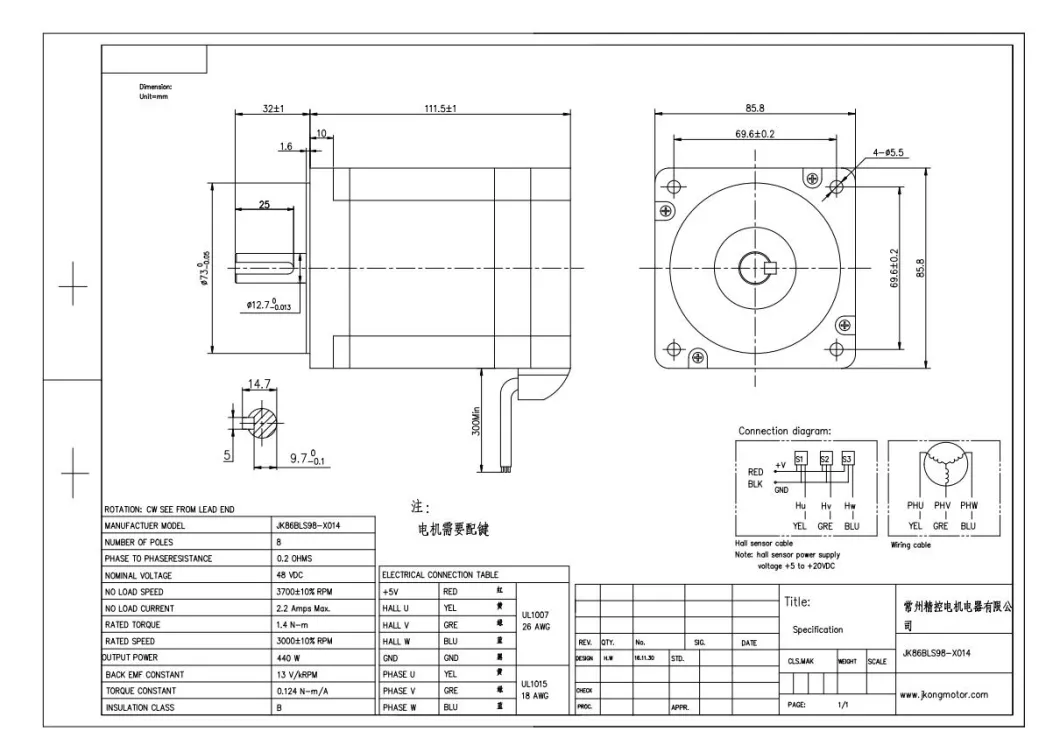

Drawing:
| /Model | ||||||
| Specification | Unit | JK86BLS58 | JK86BLS71 | JK86BLS84 | JK86BLS98 | JK86BLS125 |
| Number Of Phase | Phase | 3 | ||||
| Number Of Poles | Poles | 8 | ||||
| Rated Voltage | VDC | 48 | ||||
| Rated Speed | Rpm | 3000 | ||||
| Rated Torque | N.m | 0.35 | 0.7 | 1.05 | 1.4 | 2.1 |
| Rated Current | Amps | 3 | 6.3 | 9 | 11.5 | 18 |
| Rated Power | W | 110 | 220 | 330 | 440 | 660 |
| Peak Torque | N.m | 1.05 | 2.1 | 3.15 | 4.2 | 6.3 |
| Peak Current | Amps | 9 | 19 | 27 | 35 | 54 |
| Back E.M.F | V/Krpm | 13.7 | 13 | 13.5 | 13.7 | 13.5 |
| Torque Constant | N.m/A | 0.13 | 0.12 | 0.13 | 0.13 | 0.13 |
| Rotor Inertia | g.c | 400 | 800 | 1200 | 1600 | 2400 |
| Body Length | mm | 71 | 84.5 | 98 | 111.5 | 138.5 |
| Weight | Kg | 1.5 | 1.9 | 2.3 | 2.7 | 4 |
| Sensor | /Honeywell | |||||
| Insulation Class | B | |||||
| Degree of Protection | IP30 | |||||
| Storage Temperature | -25~+70ºC | |||||
| Operating Temperature | -15~+50ºC | |||||
| Working Humidity | 85% RH() | |||||
| Working Environment | (),,,, | |||||
| Altitude | 1000 | |||||
Drawing:
Q1: Are you a trading company or a manufacturer?A1: We are a manufacturer with 8 years of professional production experience.
Q2: Do you provide OEM or ODM service?
A2: Yes, JKONGMOTOR company warmly welcome OEM or ODM corporrations and other companies to establish long-term cooperation with us.
A2: Yes, JKONGMOTOR company warmly welcome OEM or ODM corporrations and other companies to establish long-term cooperation with us.
Q3: What's the MOQ?
A3: 3 units.
A3: 3 units.
Q4:Where is your loading port?
A5:Building A2,Hutan Industrial Zone,Wujin District, Chagnzhou,China.
A5:Building A2,Hutan Industrial Zone,Wujin District, Chagnzhou,China.
Q5: Are your delivery dates on time?
A5: Yes of course.We have our own factory so can ensure timely delivery.
A5: Yes of course.We have our own factory so can ensure timely delivery.
Q6: What about your warranty?
A6: We guarantee is 12 months, for sea order is 15 months.
A6: We guarantee is 12 months, for sea order is 15 months.
Q7: Do you provide after-sales service?
A7: Yes, we will give useful advise within 12 hours if you have any requirments.
