24V 36V 48V 310V BLDC Motor 100W 200W 500W 800W 1500W Brushless DC Motor BLDC Motor with Hall Sensor 3 Phase with Hall with Brake Fo Home Automation

Product Description

86mm-BLDC-motor


Specification:

General Specification
(Item)(Specification)
Winding typeStar
Hall effect angle120 120 degree electrical angle
Shaft run out0.025mm
Radial play0.02mm@450g
End play0.08mm@450g
Max.radial force220N@20mm form the flange
Max.axial force60N
Insulation classClass B
Dielectric strength500VDC for one minute
Insulation resistance100MΩ Min.,500VDC


Electrical Specification
SpecificationUnitJK86BLS58JK86BLS71JK86BLS84JK86BLS98JK86BLS125
Number Of PhasePhase3
Number Of PolesPoles8
Rated VoltageVDC48
Rated SpeedRpm3000
Rated TorqueN.m0.350.71.051.42.1
Rated CurrentAmps36.3911.518
Rated PowerW110220330440660
Peak TorqueN.m1.052.13.154.26.3
Peak CurrentAmps919273554
Back E.M.FV/Krpm13.71313.513.713.5
Torque ConstantN.m/A0.130.120.130.130.13
Rotor Inertiag.c400800120016002400
Body Lengthmm7184.598111.5138.5
WeightKg1.51.92.32.74
Sensor/Honeywell
Insulation ClassB
Degree of ProtectionIP30
Storage Temperature-25~+70ºC
Operating Temperature-15~+50ºC
Working Humidity85% RH()

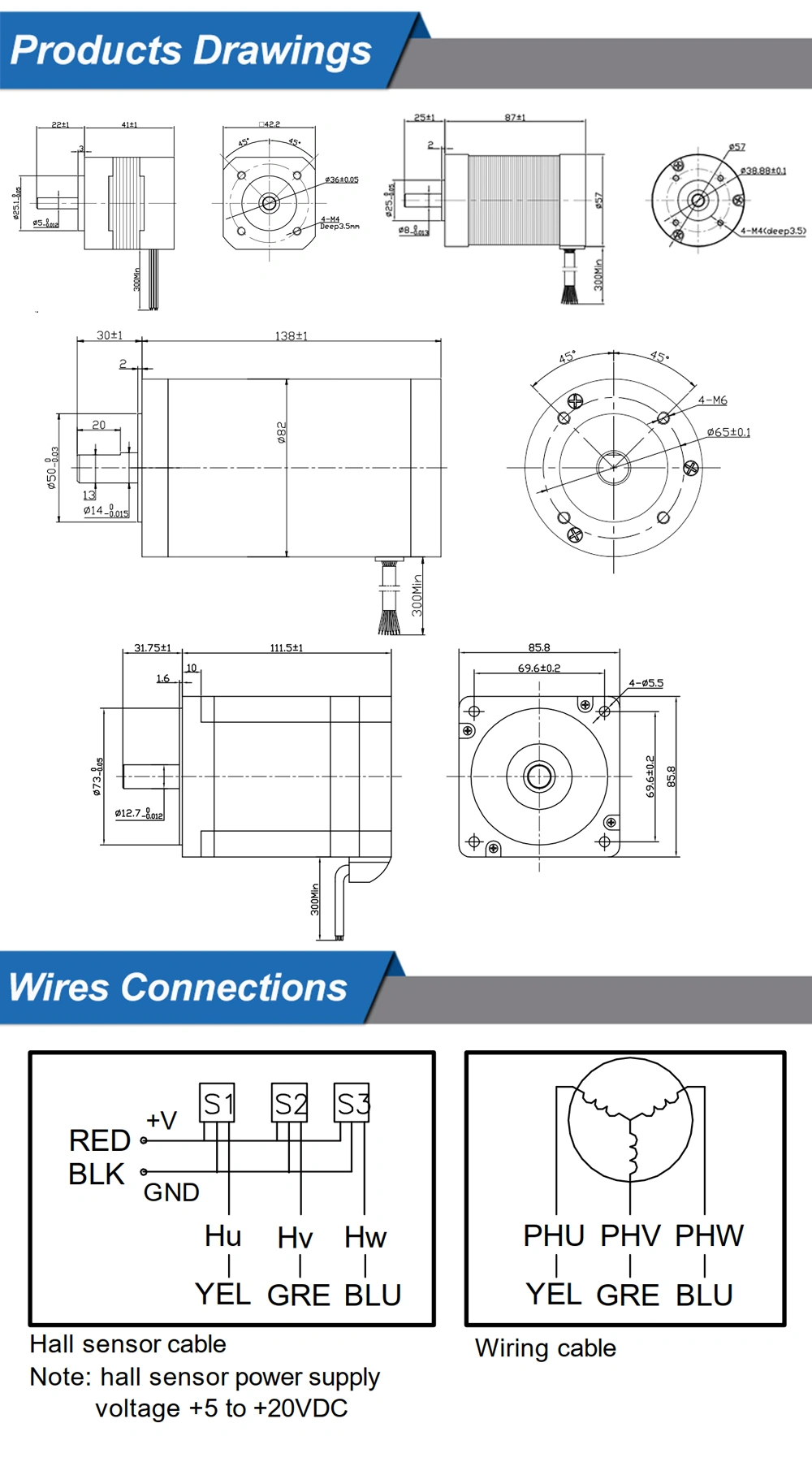

Drawing:


24V 36V 48V 310V BLDC Motor 100W 200W 500W 800W 1500W Brushless DC Motor BLDC Motor with Hall Sensor 3 Phase with Hall with Brake Fo Home Automation

Company Profile:

24V 36V 48V 310V BLDC Motor 100W 200W 500W 800W 1500W Brushless DC Motor BLDC Motor with Hall Sensor 3 Phase with Hall with Brake Fo Home Automation
24V 36V 48V 310V BLDC Motor 100W 200W 500W 800W 1500W Brushless DC Motor BLDC Motor with Hall Sensor 3 Phase with Hall with Brake Fo Home Automation24V 36V 48V 310V BLDC Motor 100W 200W 500W 800W 1500W Brushless DC Motor BLDC Motor with Hall Sensor 3 Phase with Hall with Brake Fo Home Automation

24V 36V 48V 310V BLDC Motor 100W 200W 500W 800W 1500W Brushless DC Motor BLDC Motor with Hall Sensor 3 Phase with Hall with Brake Fo Home Automation24V 36V 48V 310V BLDC Motor 100W 200W 500W 800W 1500W Brushless DC Motor BLDC Motor with Hall Sensor 3 Phase with Hall with Brake Fo Home Automation24V 36V 48V 310V BLDC Motor 100W 200W 500W 800W 1500W Brushless DC Motor BLDC Motor with Hall Sensor 3 Phase with Hall with Brake Fo Home Automation
24V 36V 48V 310V BLDC Motor 100W 200W 500W 800W 1500W Brushless DC Motor BLDC Motor with Hall Sensor 3 Phase with Hall with Brake Fo Home Automation
