4000rpm 3 Phase Brushless DC Motor with 8 Wires Used for CNC Equipment

Product Description

4000rpm 3 phase Brushless Dc Motor with  8 wires used for CNC Equipment

Product Description:
Electrical Specification:
  Model
SpecificationUnitJK57BLS005JK57BLS01JK57BLS02JK57BLS03JK57BLS04
Number Of PhasePhase3
Number Of PolesPoles4
Rated VoltageVDC36
Rated SpeedRpm4000
Rated TorqueN.m0.0550.110.220.330.44
Rated CurrentAmps1.223.65.36.8
Rated PowerW234692138184
Peak TorqueN.m0.160.330.6611.32
Peak CurrentAmps3.56.811.515.520.5
Back E.M.FV/Krpm7.87.77.47.37.1
Torque ConstantN.m/A0.0740.0730.070.070.068
Rotor Inertiag.cm^23075119173230
Body Lengthmm37476787107
WeightKg0.330.440.7511.25
SensorHoneywell
Insulation ClassB
Degree of ProtectionIP30
Storage Temperature-25~+70ºC
Operating Temperature-15~+50ºC
Working Humidity85% or under 85% RH(non condensing)
Working Environmentoutdoor(no direct sunlight),Non-corrosive Gas,
Non-inflammable gas, No oil fog, No dust
Altitude1000m or under 1000m
General Specification
ItemSpecification
Winding typeStar
Hall effect angle120 degree electrical angle
Shaft run out0.025mm
Radial play0.02mm@450g
End play0.08mm@450g
Max.radial force75N @20mm form the flange
Max.axial force15N
Insulation classClass B
Dielectric strength500VDC for one minute
Insulation resistance100MΩ Min.,500VDC


Products of special request can be made according to the customer request !
4000rpm 3 Phase Brushless DC Motor with 8 Wires Used for CNC Equipment

4000rpm 3 Phase Brushless DC Motor with 8 Wires Used for CNC Equipment
4000rpm 3 Phase Brushless DC Motor with 8 Wires Used for CNC Equipment4000rpm 3 Phase Brushless DC Motor with 8 Wires Used for CNC Equipment4000rpm 3 Phase Brushless DC Motor with 8 Wires Used for CNC Equipment4000rpm 3 Phase Brushless DC Motor with 8 Wires Used for CNC Equipment4000rpm 3 Phase Brushless DC Motor with 8 Wires Used for CNC Equipment

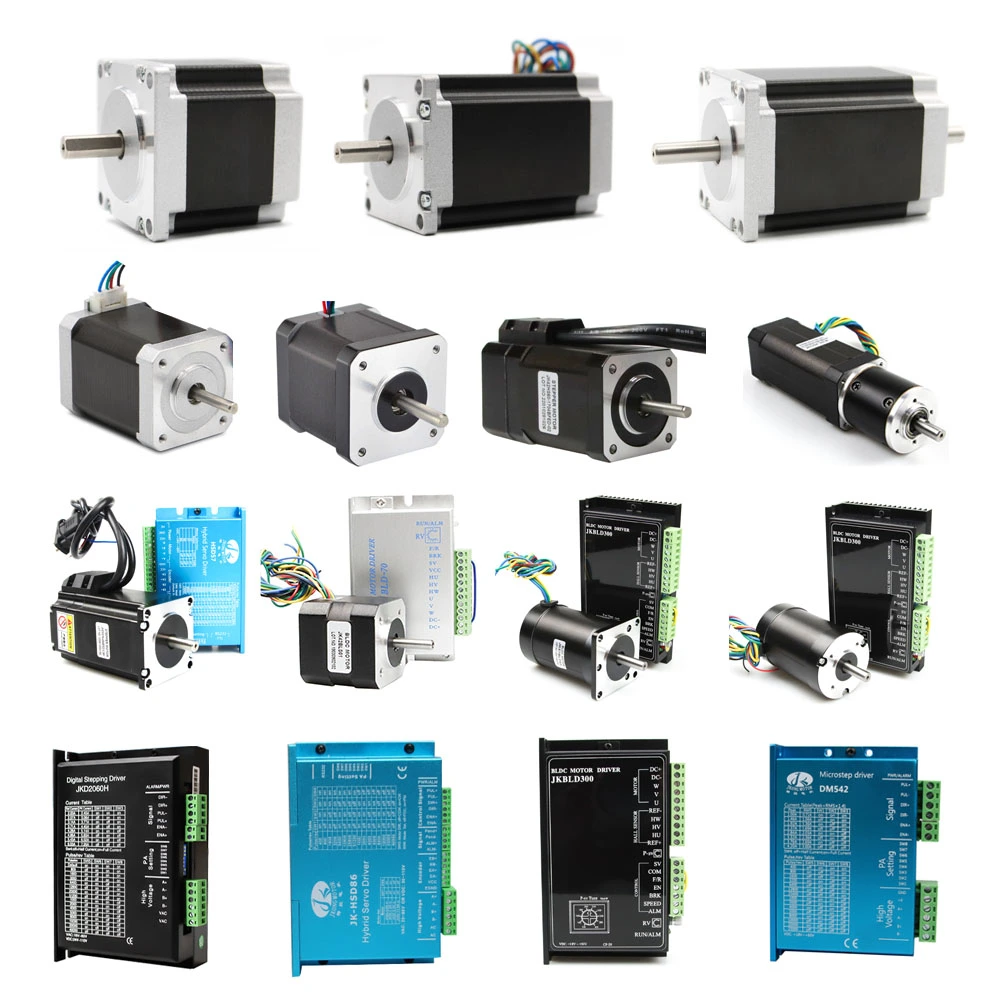

Our Company offers three major series of products:Hybrid Stepper Motors, Brushless Dc motor and Dc Brush Motor.
